Air Cylinder CA2/CDA2
 | ・Weight reduced by up to 15% ・Easy air cushion control ・Various switches, such as compact auto switches and magnetic field resistant auto switches, can be mounted. ・Part numbers with a rod end bracket and/or pivot bracket are available. (It is not necessary to order a bracket for the applicable cylinder separately.) ・With auto switch (CDA2 series: CDA2, CDA2W, CDA2K, CDA2KW, CDBA2, CDA2□H, CDA2W□H, CDA2□Q) |
| Type | Series | Action | Bore size (mm) |
|---|---|---|---|
| Standard | CA2-Z | Double acting single rod | 40, 50, 63, 80, 100 |
| Standard | CA2W-Z | Double acting double rod | 40, 50, 63, 80, 100 |
| Non-rotating rod | CA2K | Double acting single rod | 40, 50, 63 |
| Non-rotating rod | CA2KW | Double acting double rod | 40, 50, 63 |
| With end lock | CBA2 | Double acting single rod | 40, 50, 63, 80, 100 |
| Air-hydro | CA2□H | Double acting single rod | 40, 50, 63, 80, 100 |
| Air-hydro | CA2W□H | Double acting double rod | 40, 50, 63, 80, 100 |
| Low friction | CA2□Q | Double acting single rod | 40, 50, 63, 80, 100 |

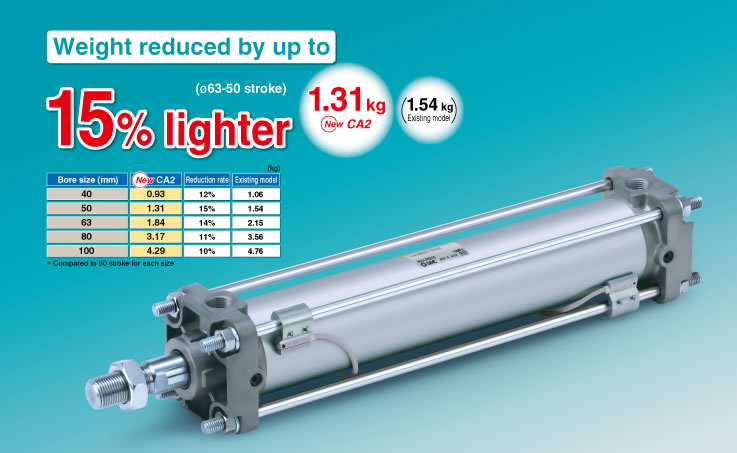

■Reduced weight by changing the shape of the rod cover and head cover.
Weight reduced by up to 15% lighter（ø63-50 stroke）
1.31 kg（New）←1.54 kg（Existing model）

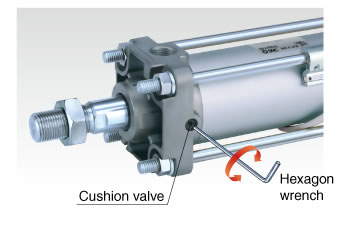

■Easy air cushion control
Number of cushion valve adjustment rotations increased from 1 rotation to 3 rotations.
Fine adjustment becomes easy, ensuring smooth operation at the stroke end.

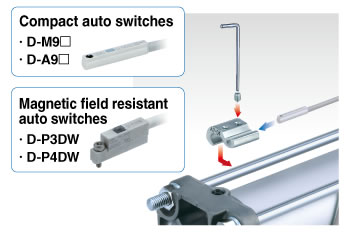

■Various switches such as compact auto switches and magnetic field resistant auto switches can be mounted.
■Made to Order set additionally
- Heat resistant cylinder（-XB6）
- With heavy duty scraper（-XC4）
- Adjustable stroke cylinder（-XC8, 9）
- Dual stroke cylinder（-XC10, 11） etc. are added.

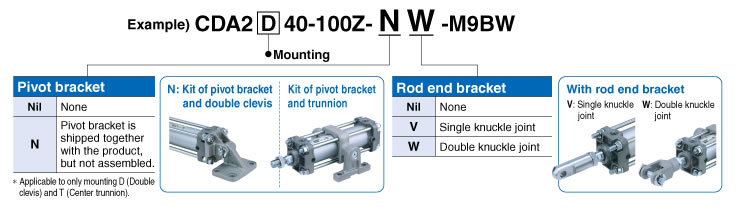

■Part numbers with rod end bracket and/or pivot bracket available
Not necessary to order a bracket for the applicable cylinder separately
Note) Mounting bracket is shipped together with the product, but not assembled.

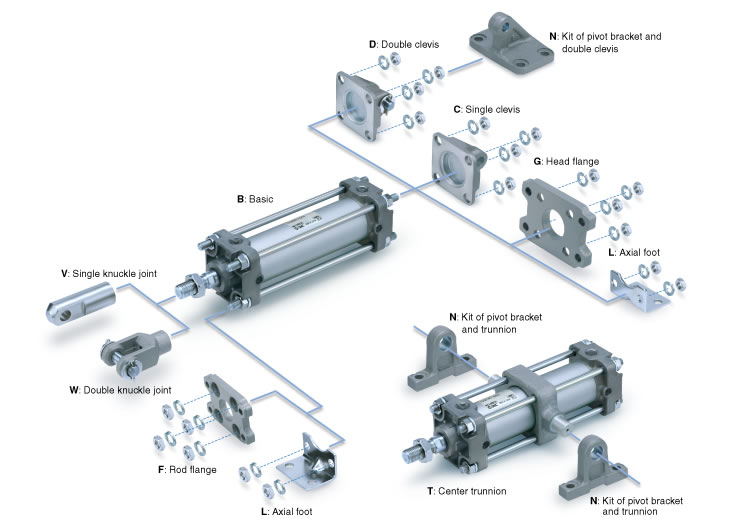

■Various mounting bracket options
- Suitable mounting brackets can be selected for the installation condition.
- Improved amount of mounting freedom

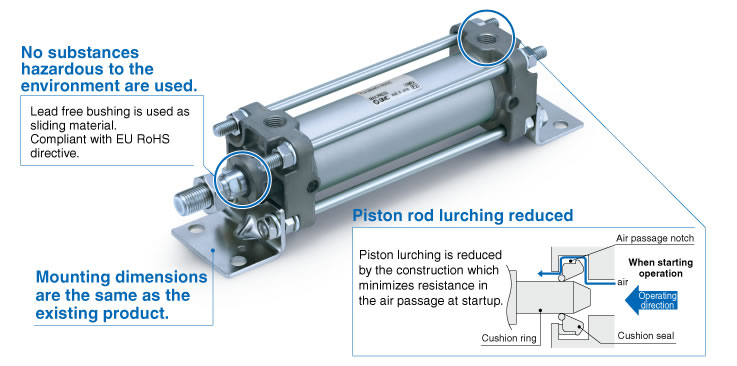

■Other Features

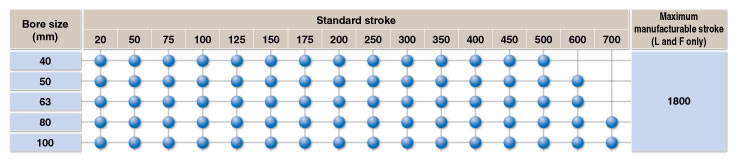

■Stroke Variations
